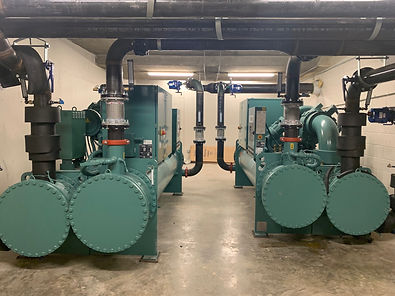

C SPIRE Chiller Replacement and Controls Upgrade

Company Overview:  C Spire is an advanced technology company that delivers customer-inspired wireless, business solutions, and home services. C Spire is known to be Mississippi's leading technology company.

Project: Update Central Plant Controls

Mechanical Contractor: Roberts Mechanical Services

Controls Contractor: Ward Mechanical Equipment

Equipment Supplier: Ward Mechanical Equipment

Location: Ridgeland, MS

•    Furnish new BACnet controller and expansion modules as required to control central plant chillers, pumps, and valves as described in a sequence of operations provided by GSK Mechanical.
•    Existing sensors, relays, wiring, etc. to be reused.
•    New sensors, relays, wiring, etc. to be provided as required.
•    New BACnet communications wiring to be provided from new JCI FX-80 in the central plant (replaces existing central plant NAE as part of building supervisory controller upgrade) to new central plant BACnet controller and BACnet cards on new JCI chillers.
•    Integrate to the front end and update graphics.
•    Assist test and balance contractor.
•    Existing Cooling Tower/Condenser Water System Controller to remain.



William Carey University  Health Science

Project: New Construction

Location: Hattiesburg, MS

Mechanical Contractor: JEM

Controls Contractors: Ward Mechanical Equipment

Equipment Supplier: Ward Mechanical Equipment

Equipment Sales Division::

  • York - Air Cooled Scroll Water Chillers

  • Price -  Air Terminal Units (VAV Boxes)

  • York - Air Handling Units

  • LG - Ductless Split Systems

  • Yaskawa - VFD Drives

Controls Division:

  • Building Supervisory Controller:  Furnish Johnson Controls Facility FX-80 supervisory controller.  Provide integration to existing campus FX Server front end.

  • Chilled Water System:  Furnish controls as shown on M7.2

  • Heating Water System:  Furnish controls as shown on M7.3

  • Air Handling Units (4):  Furnish controls as shown on M7.4

  • VAV Boxes (56):  Furnish controls as shown on M7.5

  • Exhaust Fans (1):  Furnish controls as shown on M7.5

  • Domestic Hot Water Temperature Sensors (2).

  • Electric Usage Meter (1).

  • Domestic Water Flow Meter (1).

  • Monitor Elevator Sump Hi-Level Alarm.

  • Natural Gas Flow Meter (1).

  • Ductless Split Systems (2).

  • Hot Water Unit Heaters (4).

WCU Control Panels 2.jpg

RTU-1,2,3,4,5

  • Mount manufactured supplied 7-day programmable thermostats for each RTU.

Split System Air Conditioners (FUR/CU-1,2)

  • Mount Manufacturers furnished a 7-day programmable thermostat.

  • Install control wiring from indoor unit to outdoor condensing unit.

LG Heat Recovery VRF System

  • Mount AC Smart central controller

  • Mount 8 manufacturer provided room controllers.

  • Install Vnet communications wiring

LG One to One Minisplit

  • Install manufacturer provided room controller

  • Install control wiring from indoor unit to outdoor unit.

H-1 & H-2 (Kitchen Hood Systems

  • Install low voltage control wiring for each hood system.

Dishwasher Hood H-3

  • Install low voltage fan interlock for EF-10 operation

Pix and Pins

Project: New Construction

Location: Jackson, MS

Mechanical Contractor: J.L Roberts

Controls Contractor: Ward Mechanical Equipment

Equipment Supplier: Ward Mechanical Equipment

Equipment Sales Division::

  • York - Air Handling Units

  • LG - Ductless Split Systems

Controls Division:

Scope Of Work:

BMS

  • Furnish and install web-based building automation system with monitoring, trending, and alarming capability.

  • Provide custom graphical user interface.

  • Controller to be panel mounted in a location to be determined.

  • Access to system via any desktop, laptop, or mobile device connected to building LAN.

  • Workstation or laptop is NOT included in the proposal

  • Install BACnet MSTP network wiring for AHU-1  and RTU-1,2,3,4,5..

AHU-1

  • Furnish panel-mounted BACnet controller

  • Furnish sensors as needed for constant volume operation with space temperature control

  • Furnish and install return air and outside air damper actuators if required.

  • Furnish safety shutdown circuit with freeze stat, fan hi-limit, and smoke detector tie-in.  Smoke detectors were furnished and installed by others.

  • Install control wiring to the outdoor condensing unit.
